Dunlite Wind Turbines
Last updated 2010 07 04

Lloyd Dunn (1912-1978) founded Dunlite in 1935. Lloyd and his crew built excellent wind turbines at their plant in Hindmarsh, Australia. The company has been sold and the new owners do not build wind turbines nor support the ones that the Dunn family manufactured.

Quirk’s Victory Light Company in Bellevue Hill, NSW, Australia, also sold these machines under the Quirk's name. Quirk’s is now a solar energy business in Sydney Australia. When I contacted them, the current staff was completely unaware that wind turbines were ever sold with their name on them. These machines were imported into Canada under both names. The documentation is virtually identical with only the name changed.

After I got my first type BP machine running, I decided to post some information about it to help other owners. Soon, I began receiving many interesting e-mails from Dunn family members and Dunlite owners. The amount of interest shown has prompted me to expand this page to include all the information that I can collect on the Dunlite wind turbines.So far, all of the history, newspaper clippings, and Dunlite brochures have come from Lloyd Dunn's daughter Lesley Beresford and from Charlie Nottle, one of his former employees.

I am providing this information to anyone who may need it to service or restore a Dunlite wind turbine. The only Dunlites I've seen are the 2kw type BP machines so I can't offer any assistance with any other model. However,  Malcolm Barko can probably help you and he can supply “90% of the parts” from his business, Southwest Solar Portwind in Portland, Victoria, Australia. (Replacement blades have to be custom made).

Thank you to the many Dunlite wind turbine owners who have contributed  to the creation of this site by donating copies of their manuals and photos.

If you live in North America and have an unwanted Dunlite machine, I would be more than happy to give it a new home!

Dunlite Wind Turbine Models

Model
Watts
DC Volts
Blades
Gen Type
Drive
Weight
Start
End
300 watt 12 volt
300
12
2
DC generator
Direct

1936
1971
750 watt direct drive
750
32
2
DC generator
Direct

1936

750 watt gear drive
750
32
4
DC generator
Gear

1937
1967
750 watt belt drive
750
32
  DC generator
Belt

1937

110 volt generator
110
  DC generator
Gear

1941
1941
Type L
1kw
12/32/50
3 VP
DC generator
Gear
< 400
1951
1975
Type M
1.5kw
32/48/110
3 VP
DC generator
Gear
< 400
1951
1970
Type BP
1kw
12
3 VP
8-Pole 3-Phase Brushless Alternator
Gear 5:1
495
1967

Type BP
2kw
24/32/48/110
3 VP
8-Pole 3-Phase Brushless Alternator
Gear 5:1
495
1967

Type F55
5kw
110
3 VP
Brushless Alternator
 Gear 5:1
< 700
1977


Dunlite History & Newspaper Clippings

These files are parts of Dunlite history documents that were supplied by the daughter of company founder, L. B. Dunn. If anyone has a copy of the missing pages, please send me a copy .

History-1
This appears to be the older of the two history documents by several years. The original document could not be scanned using OCR so it was retyped using a word processor. Care was taken to ensure that spelling, format and the font of the original document were retained as closely as possible. Page 1 was missing.

History-2
The original document was scanned using optical character recognition and “touched up” using a word processor. Care was taken to ensure that the format and the font of the original typewriter were retained. Pages 1 & 2 were missing.

Events in the History of Dunlite
This is a time-line that covers events from 1936 to 1978. There was a hand written correction of one item that was out of sequence so I incorporated that change. Thus this document does not look identical to the original but it is very close.

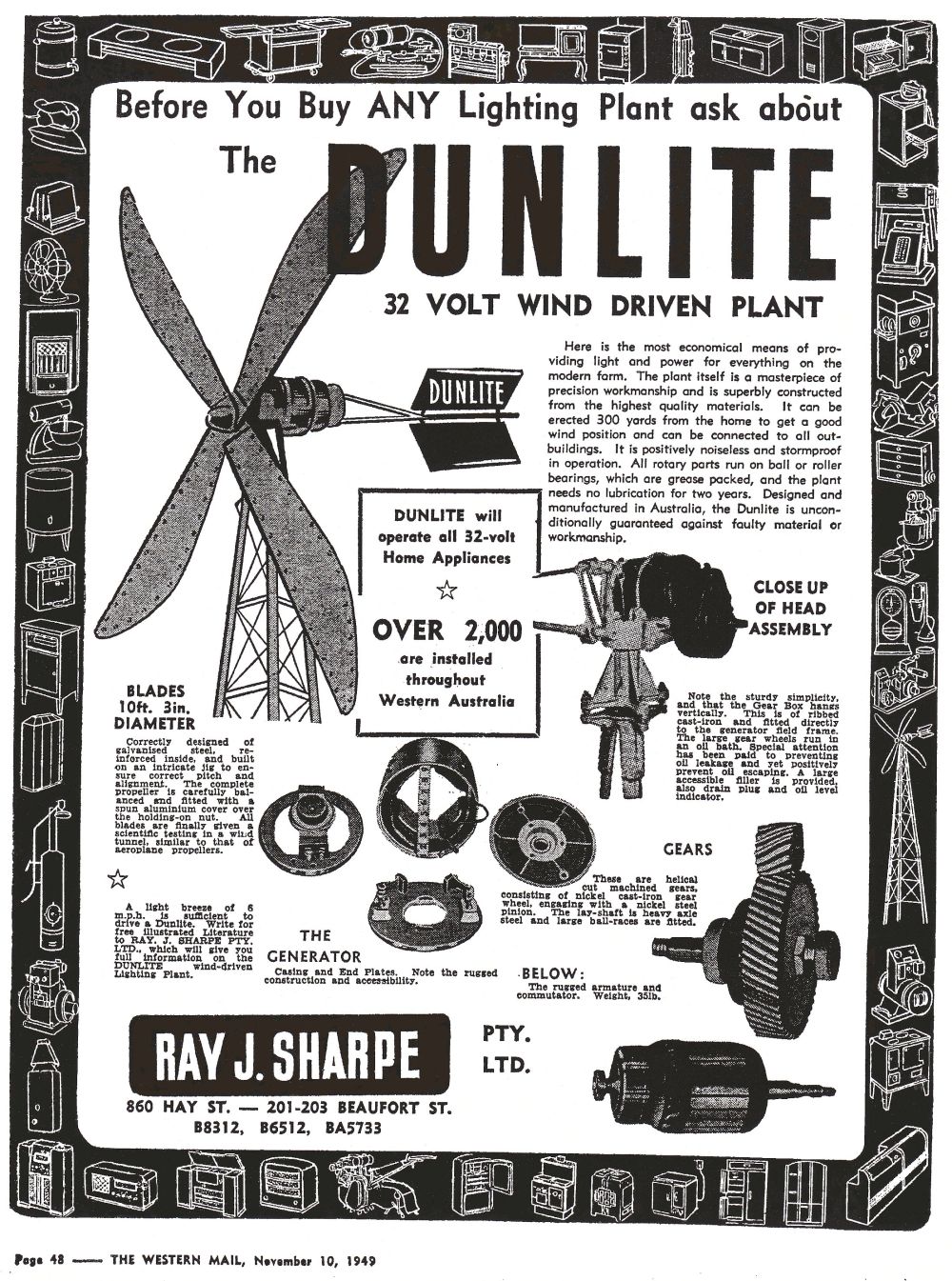

Dunlite History # 1             New 2002 06 17 Wind Driven Battery Charging Plants New 2003 02 01 1949 Newspaper Ad   New 2010 02 19
Dunlite History # 2             New 2002 06 17 Dunlite Is For Real  New 2003 02 01 Blue brochure (5 zipped photos)  New 2010 02 19
Events in the History of Dunlite New 2002 06 17 Grant for New Energy System   New 2003 02 01 Colour brochure (6 zipped photos)   New 2010 02 19
Lloyd Dunn's Obituary       New 2002 07 15

Dunlite Type BP 2-KW Wind Turbine
1967 - 19__

The CAD drawings are "reverse engineered" (drawn from existing machine parts). There may have been production run changes and I'm not a professional deaftsman so I can't guarantee their accuracy. The CAD drawings are in .dxf format and may be viewed or modified using any CAD software. The Acrobat (.pdf) documents require Adobe Acrobat or Acrobat Reader which is free from www.adobe.com.

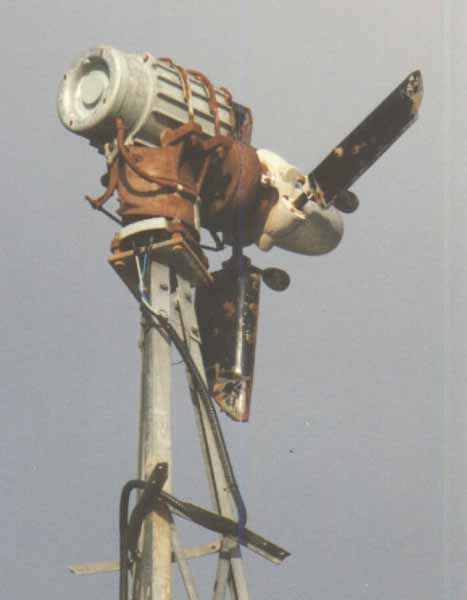

Manual - (Acrobat format)  (78k) Does not include the CAD drawings One sick puppy - the "before" picture  (21k)

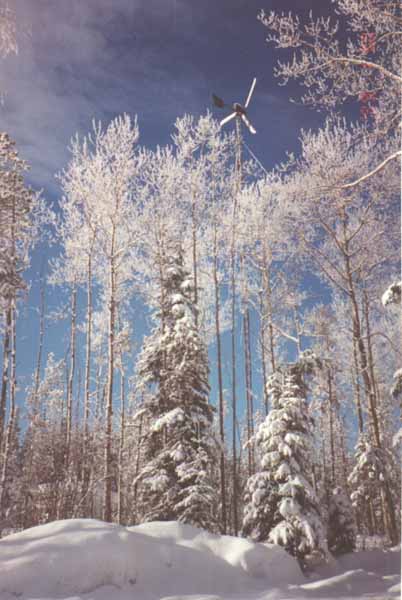

The Dunlite Wind generator   (80k)  New 2002 06 17 My 1st machine - 80’tower, snow scene  (43k)

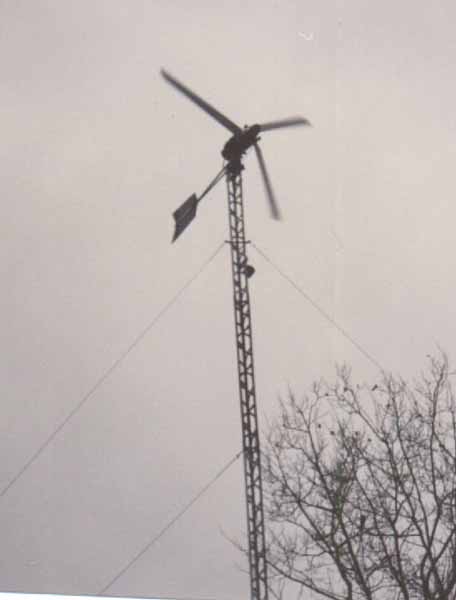

Making Replacement Blades (HTML)  My 1st machine - Closer view - running  (20k)

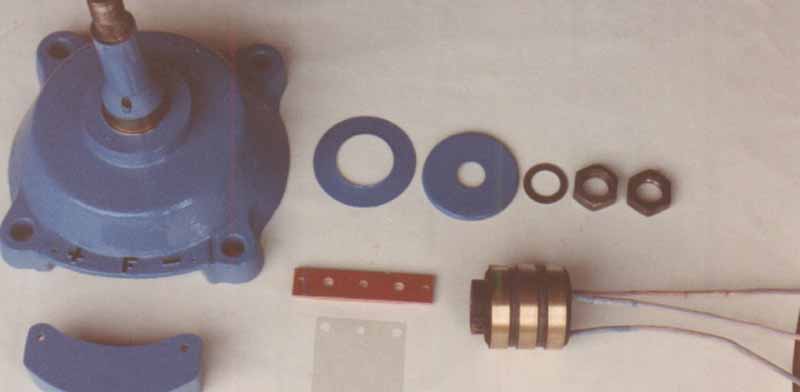

How Brushless Alternators Work   (51k) PDF New 2002 07 15 Base photo (19k)

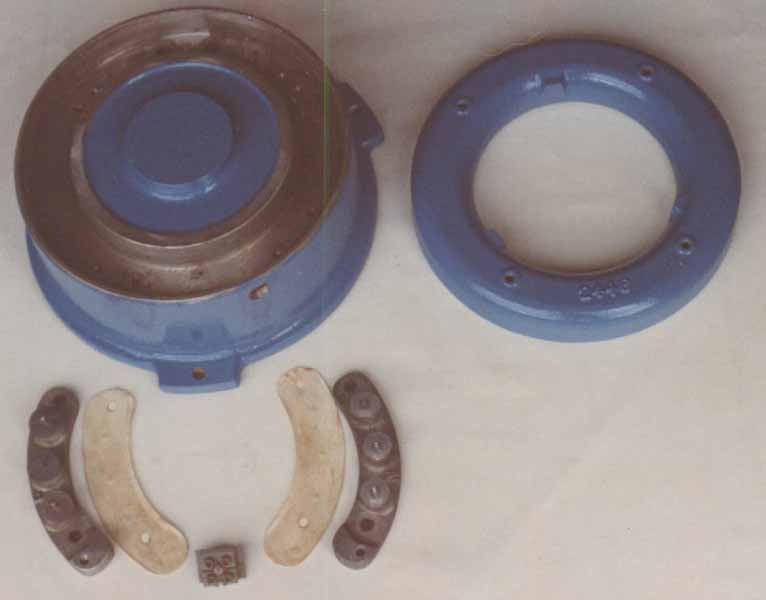

Brushless Alternators (Home Power Magazine #97 page 68)   New 2010 02 19 Back cover photo (25k)

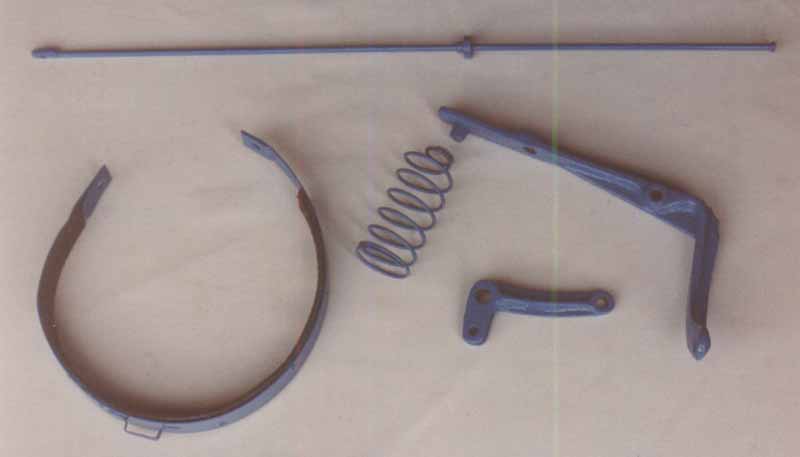

CAD (All DXF drawings listed below zipped into 1 file) (104k) Brake parts photo  (20k)

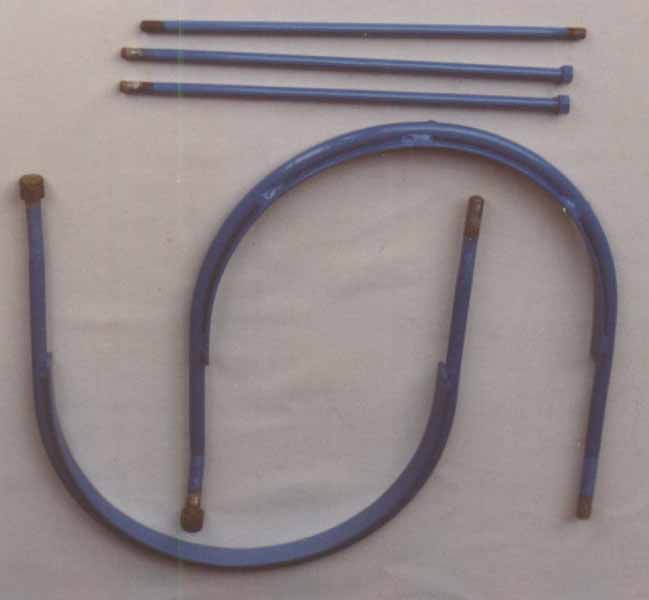

       Blade, Blade Stiffener, Tail vane, Tail bracket  Clamps photo (22k)
       Schematic, Wiring End View Drive parts photo  (20k)

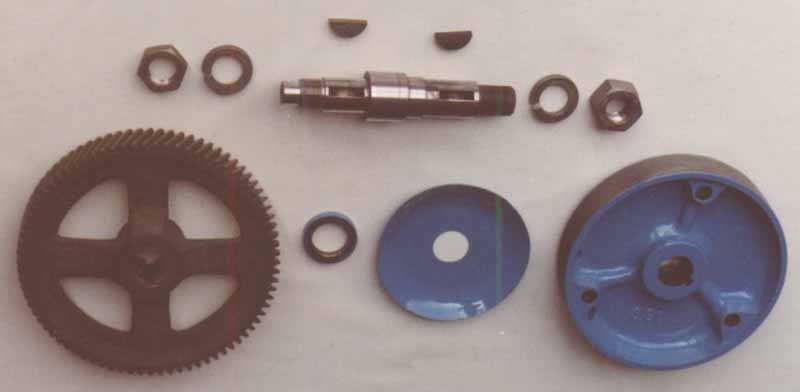

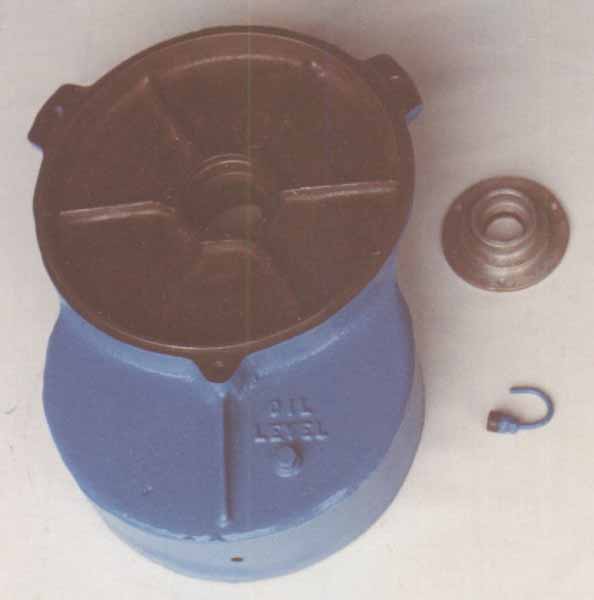

  Gearbox photo  (20k)

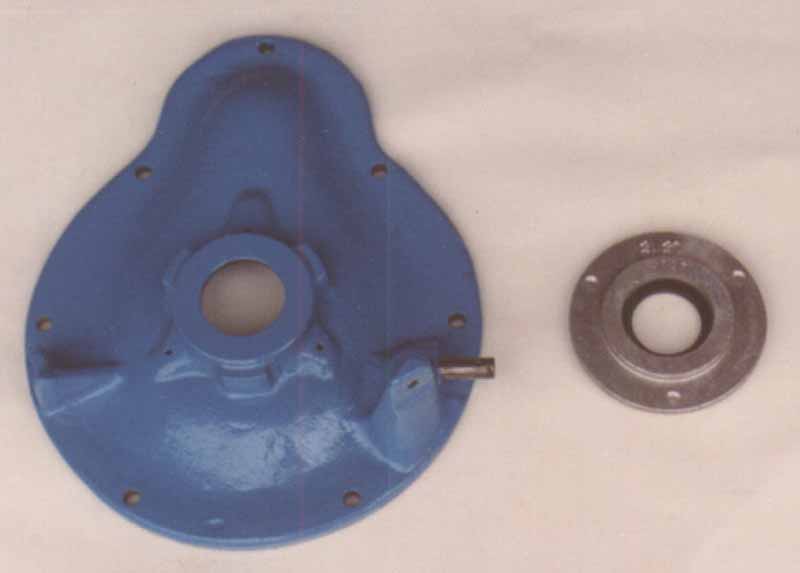

  Gearbox cover photo  (21k)

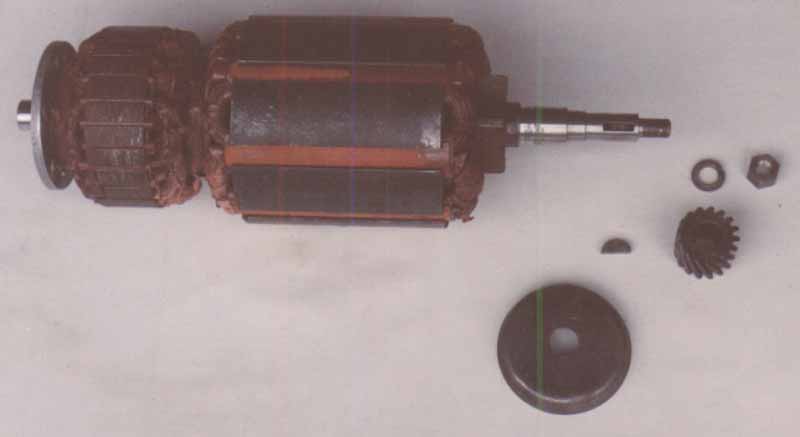

Diotran voltage regulator module  HTML  New 2004 01 19 Rotor photo (19k)

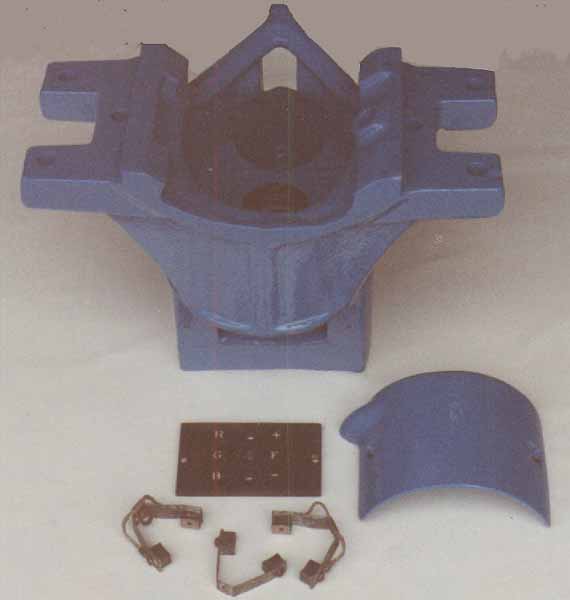

  Turntable photo  (21k)
Dunlite Variable Pitch Power Curve  PDF (1,071k)  New 2003 02 01 Exciter Stator photo

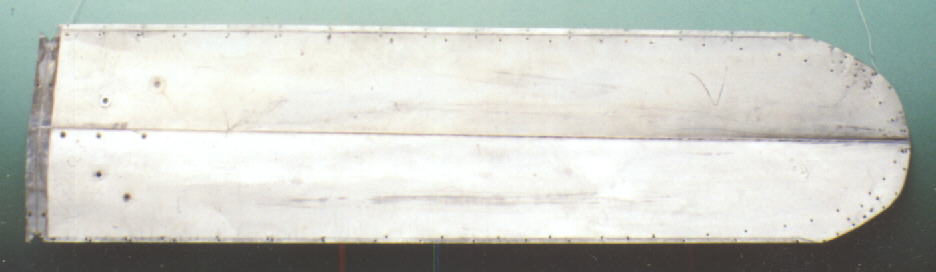

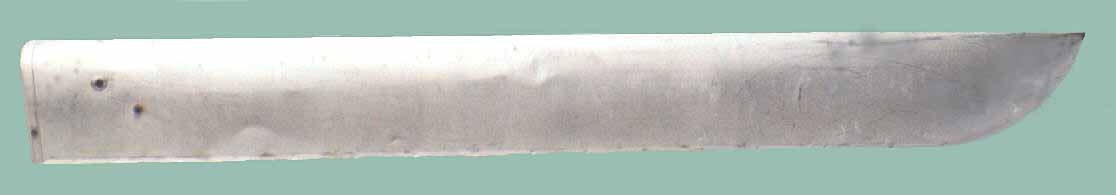

Blade flat side (front) photo

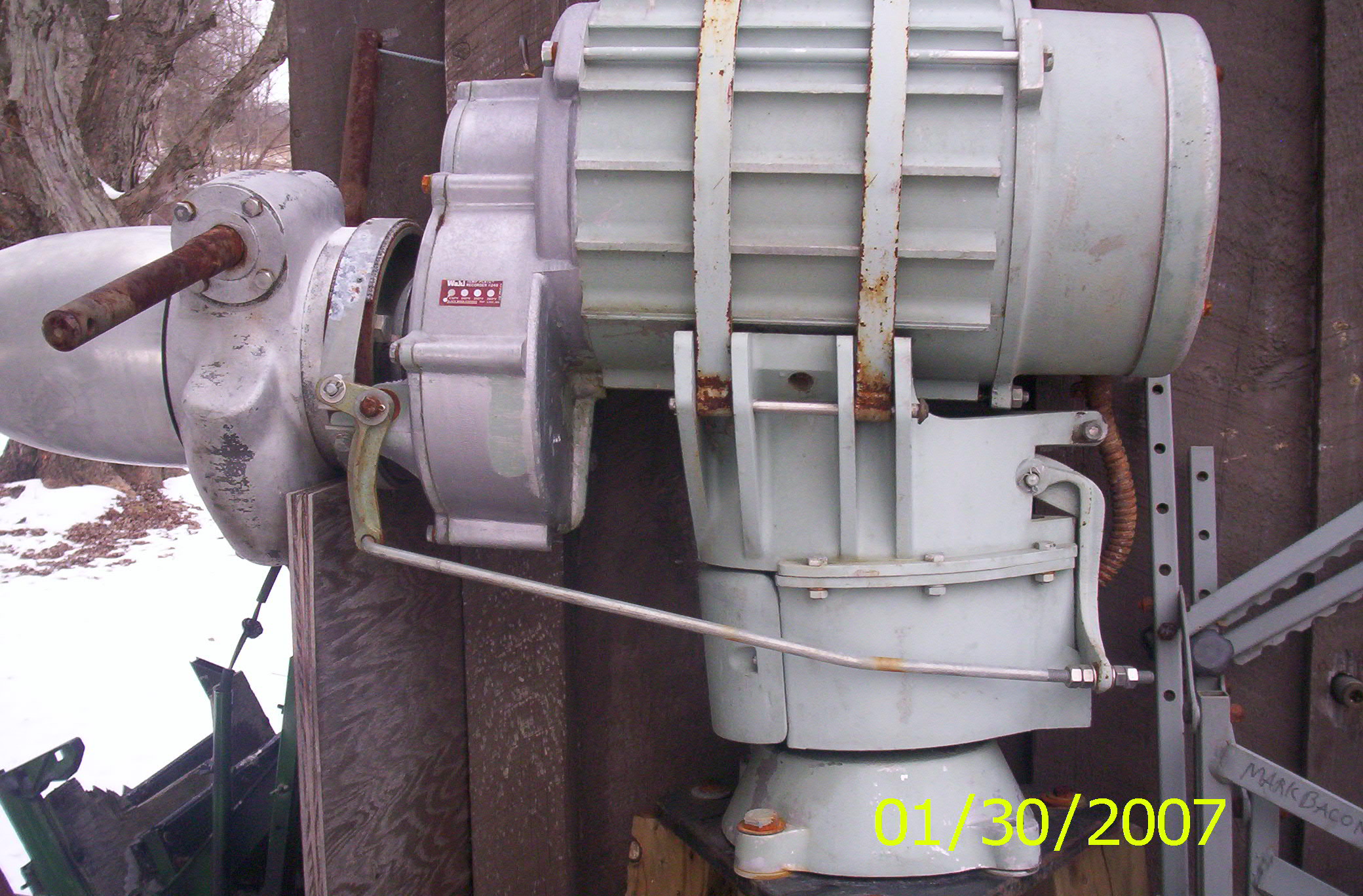

1021-73-1 Schematic sheet 1  (791k) Third base style (photo) New 2010 02 19
1021-73-2 Schematic sheet 2  (35k) Blade curved side (rear) photo (15k)

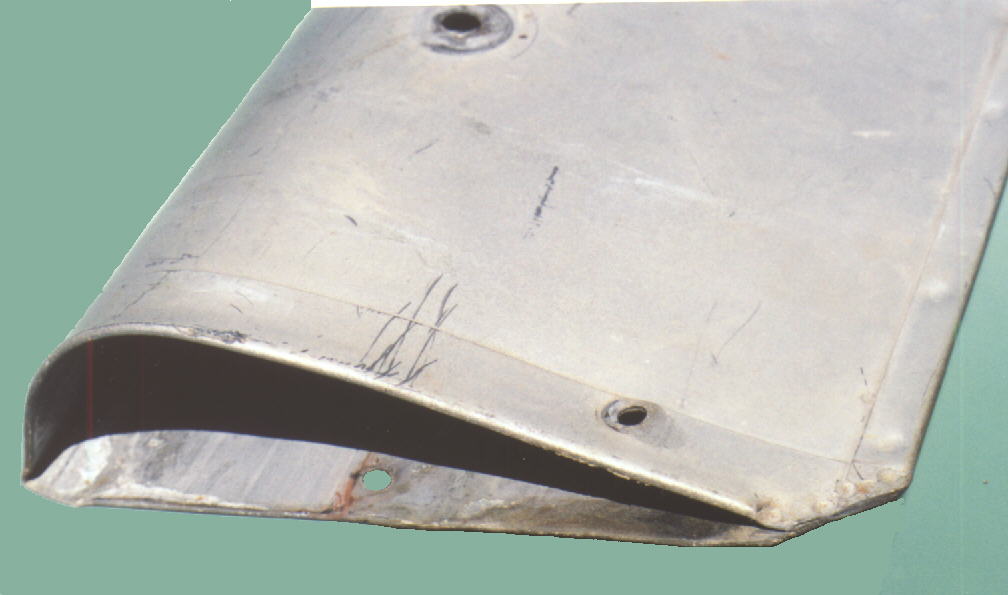

1076 Tower cap  (57k) Blade Root (close-up) photo  (49k)

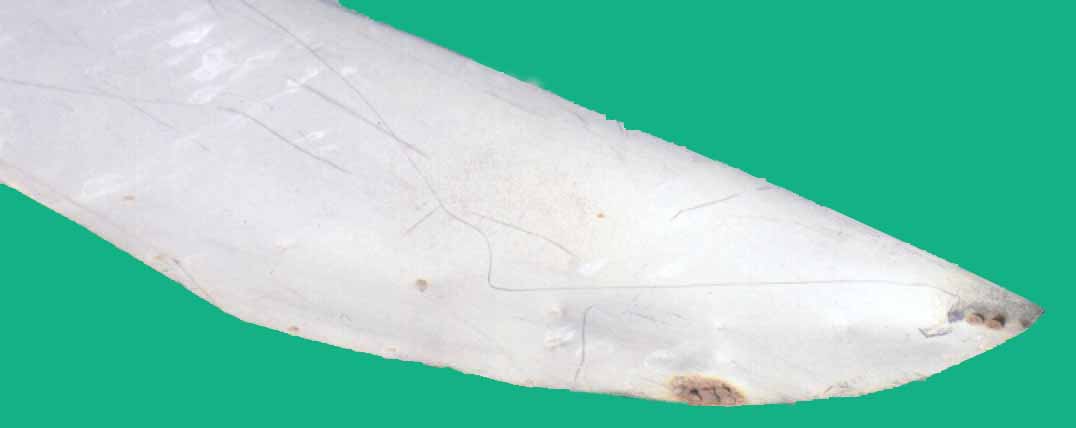

1114  Tower  (57k) Blade Tip   (close-up) photo  (21k)
2507-B Head  (71k) Blade un-folded  photo  (23k)   New 2004 01 19
3446 Propeller hub assembly (2 pages PDF)  (77k) New 2003 02 01 Blade Stiffener curved side (rear) photo
3447 Body & Gearbox  (2 pages PDF)  (111k) New 2003 02 01 Blade Stiffener flat side (front) photo
3448 Head & Tail Assembly  PDF (72k)
3449 Plant Installation Details  PDF (52k)   New 2003 02 01

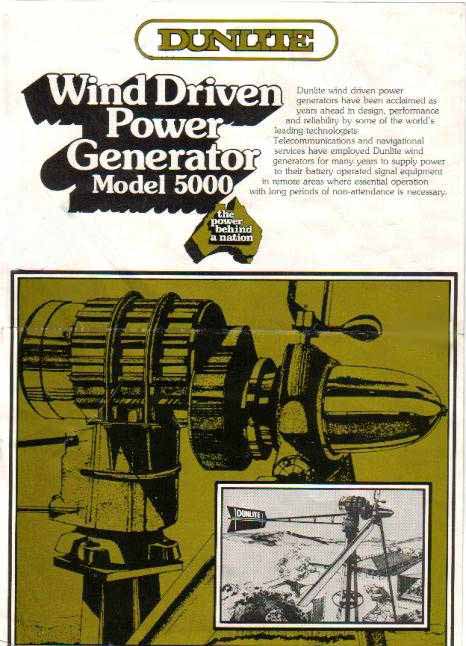

3455 Propeller Assembly  PDF (77k) Dunlite BP Brochure (2 pages PDF)  (712k) New 2002 06 17
3469 Tower platform  PDF (64k) Quirks BP Brochure  (2 pages PDF)  (146k)

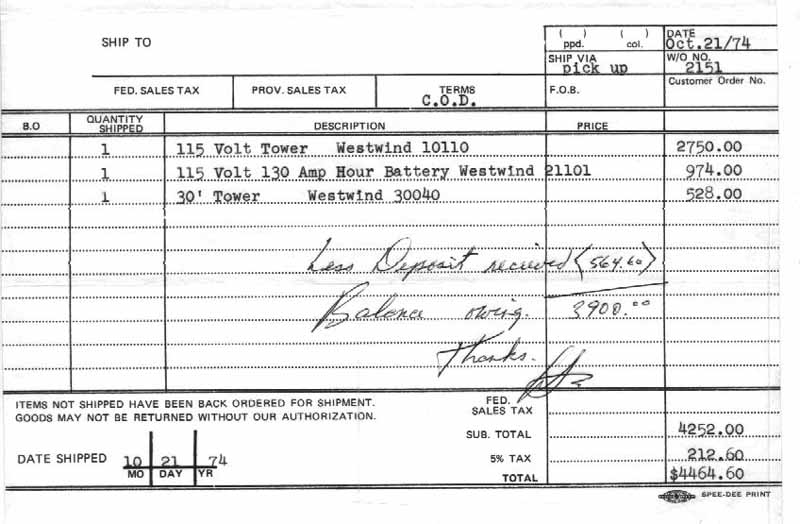

3549 Propeller feathering assembly  PDF (55k) Invoice – 1974 Canadian retail price  JPG (65k)

Dunlite Type L & M  Wind Turbines
1951 - 1975

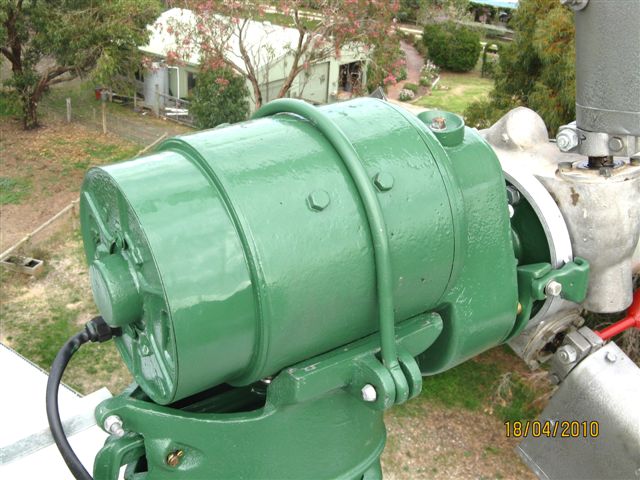

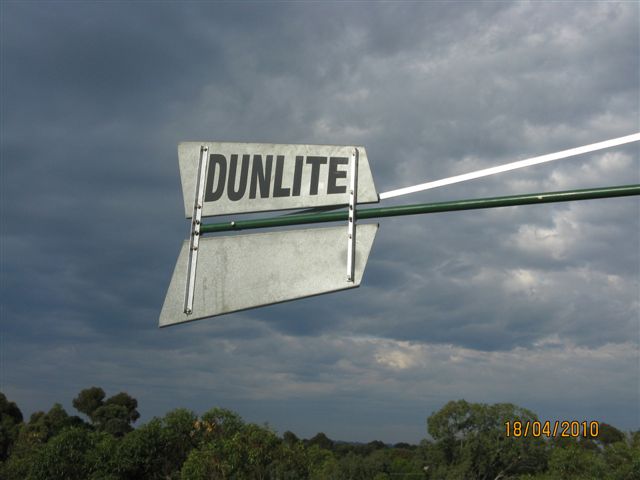

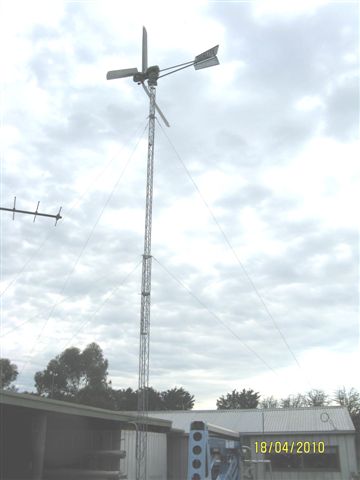

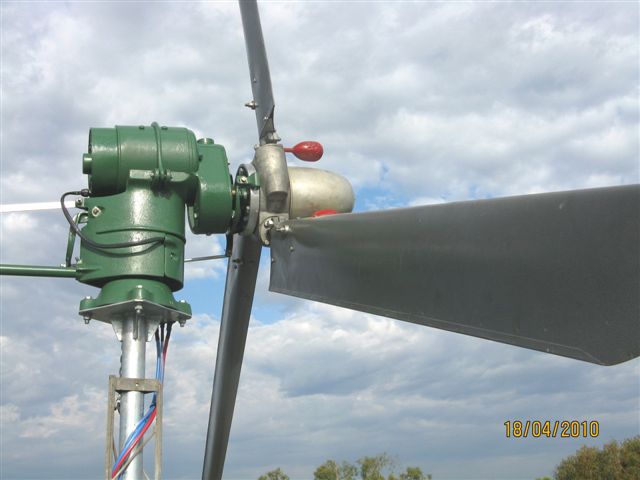

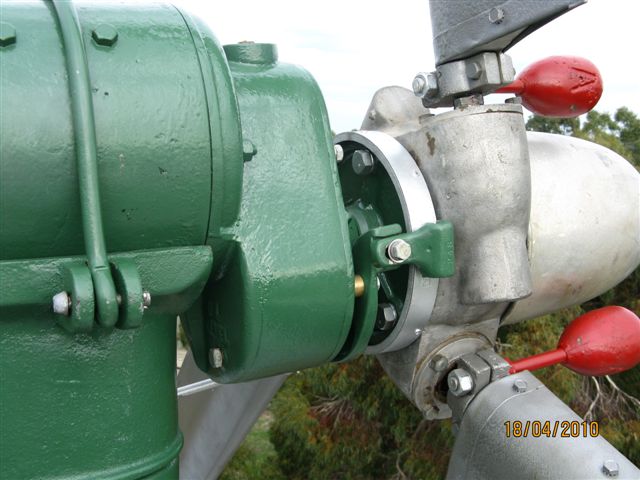

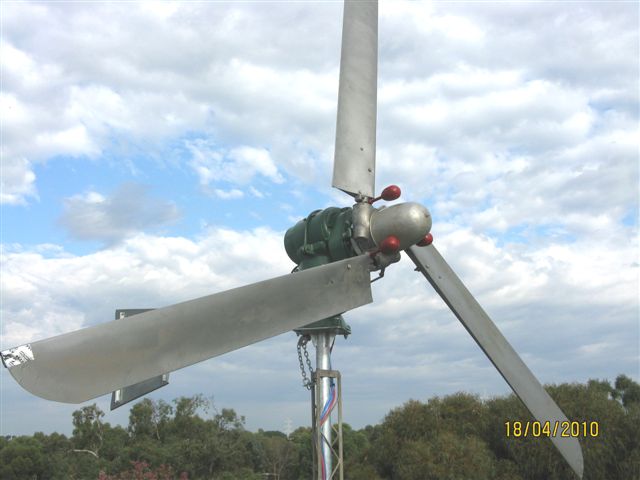

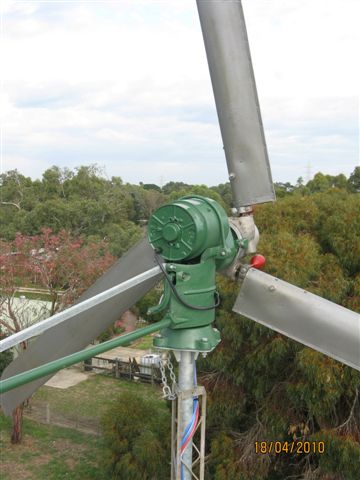

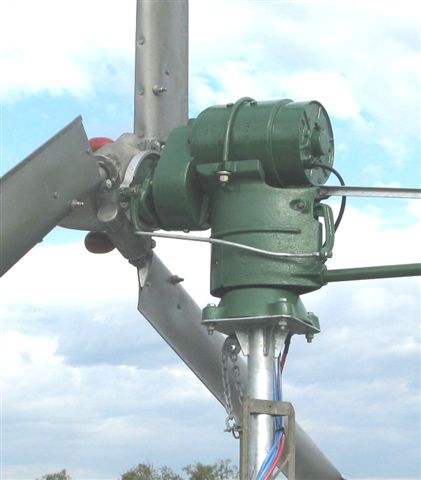

Parts List with exploded view (3 pages)  (2929k) New 2003 02 01 Right side    Tail      Front view    Left side    New 2010 04 18 (Thanks Don)
Owner's Manual   New 2010 02 20 Rear view    Hub     Top view     Tower

Dunlite 32 Volt 750 Watt Gear Drive Wind Turbine
1937 - 1967

Although the manual is in Acrobat format, it was built from jpg scans rather than scanning directly into Acrobat. I would like to give credit to the Australian owner of the machine who sent me the scans but I've lost his e-mail address and unfortunately pages 2 & 3 are missing so I can't ask him for the missing pages. Thanks to Allan White of Australia for the photo.

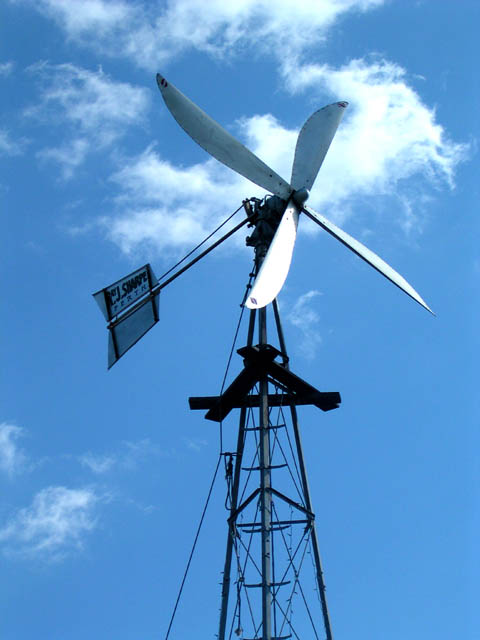

Owner's Manual  PDF format (458k) Brochure (633k) New 2002 06 17 Photo(45k) New 2004 01 19

Dunlite 32 Volt 750 Watt Direct Drive  Wind Turbine
1936 - 19__

 I do not have a manual for this model. If you have one, please send me a copy.

Owner's Manual wanted Brochure (562k)  New 2002 06 17 Photos wanted

Dunlite Type F55   5-KW  Wind Turbine
1977 - 19__

Thanks to Thomas Schaeffer of New Hampshire, USA for the manual and John Veix of Go Solar in New Zealand for the photographs of the 5kw machine.

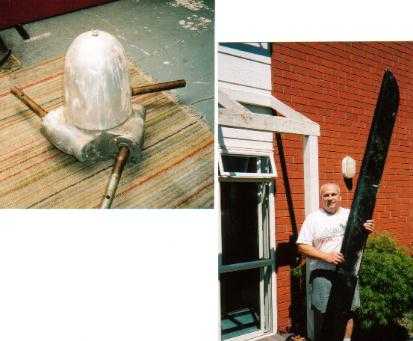

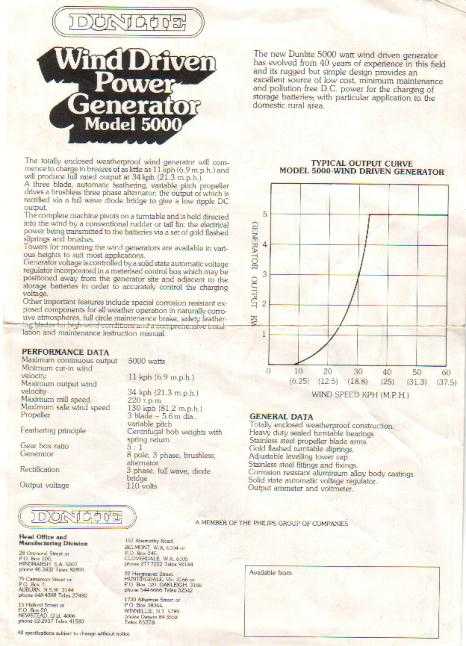

Owner's Manual PDF format (2832k) New 2004 01 19 Brochure page 1  (63k) New 2003 07 01 Blade and variable pitch hub(20k) New 2003 07 01

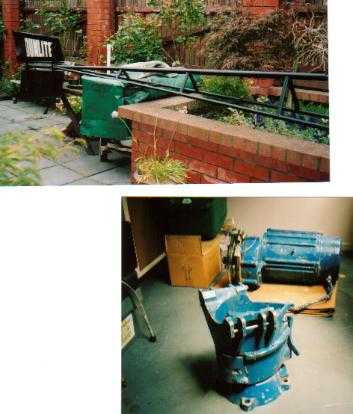

Photos (7 zipped photos)   New 2010 02 19 Brochure page 2(43k) New 2003 07 01 Tail, cradle and alternator (22k)  New 2003 07 01
